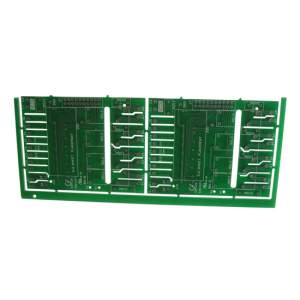

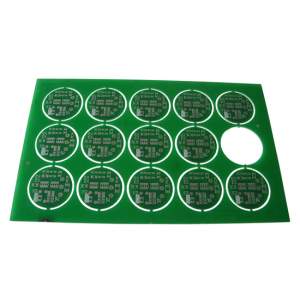

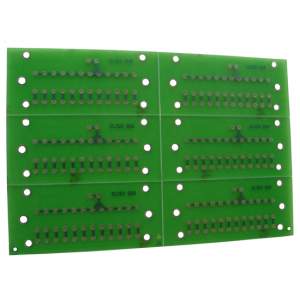

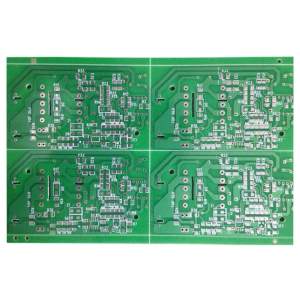

Single Layer Pcb

Call Now
+91- 989XXXX524
AvailabilityIn Stock
CategoryCircuit Board
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Single Layer Pcb Details

PCBs made from FR2, CEM1 and FR4 laminates, meeting requirements of Automotive and intertainment sectors.

  • Thickness of 0.8 to 3.2mm (with finish copper of 2 oz)
  • Line width and spacing of 6 / 6 mils
  • Minimum drilled hole of 0.35mm
  • Minimum punched hole of 0.9mm
  • Finish of UVSM / PISM with lead and lead free hot air leveling.
